Motor starter 2HP 230V single phase with contactor

€34.98 Tax included

28.44 tax excl.

PK-992ADC2201501

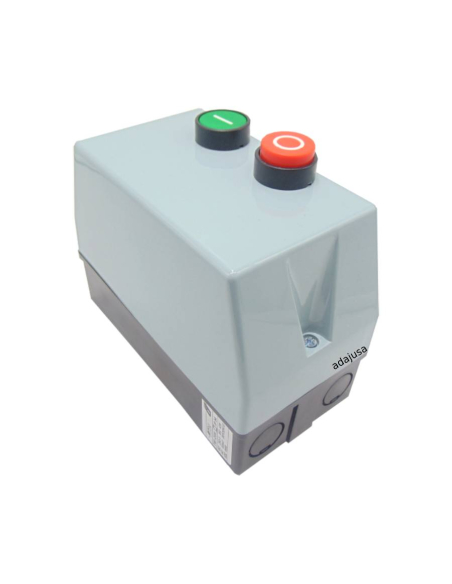

Direct starter box for 1.5Kw (2HP) 220/230 V single-phase motors, with thermal relay for motor protection, start stop buttons included.

Reference: ADC2201501



Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

This pack contains

1 question about the product
Privacy
Shipments
Returns


Direct starter box for 1.5Kw (2HP) 220-230Vac single-phase motors, with contactor and thermal relay for motor protection.


Characteristic:

  • Manufacturer/Supplier: OMU/Mixvil
  • Reference: ADC2201501

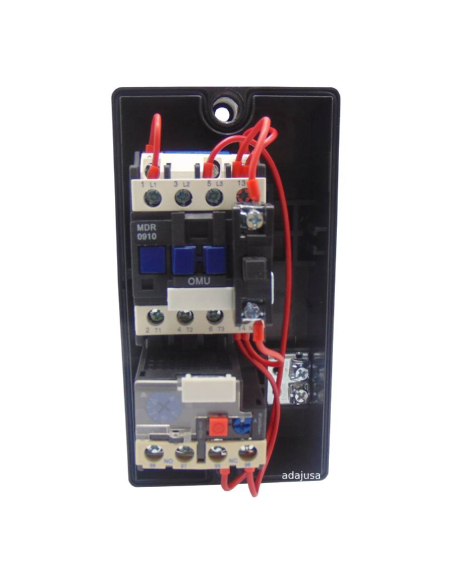

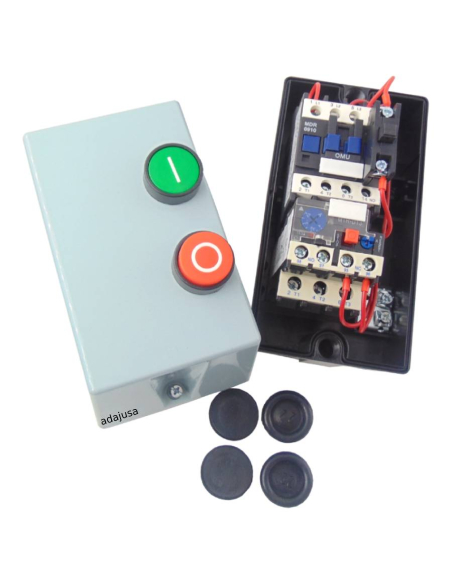

The box includes:

  • Polycarbonate box.
  • 18A AC3 contactor

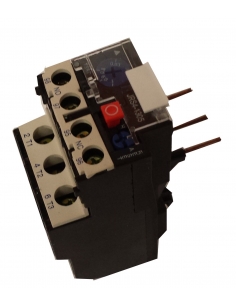

  • Thermal relay with regulation 7 - 10A
  • "I" start button, green color
  • "O" stop/reset button, red color

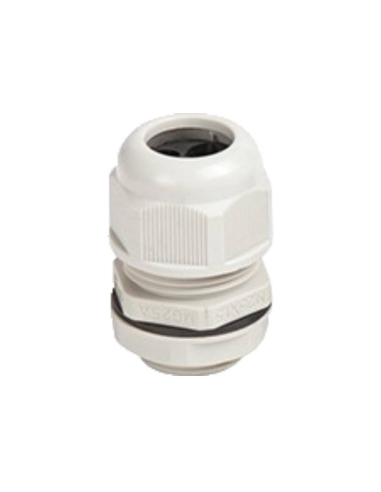

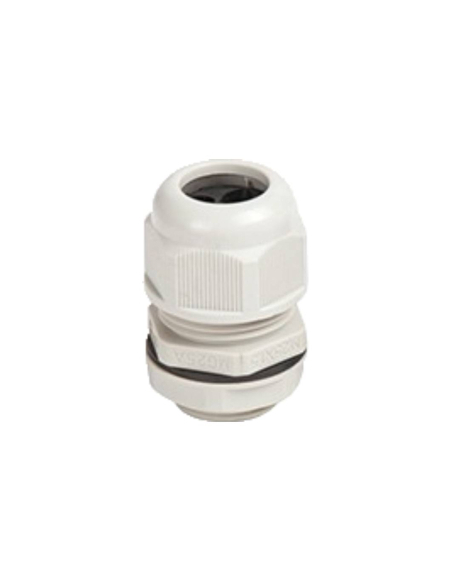

  • 2 M20 cable glands




Connection:



Dimensions:






For more information, you can download the technical sheet by clicking on the "Attached Files" tab.

Material for professional use, it must be installed by qualified personnel in compliance with the regulations in force at the place of installation.

Questions

Question
Para una bomba sumergible de 1.2Kw que botonera me serviría, esta misma u otra mayor
Answer
Buenos días.

La caja arrancadora que envía en el enlace es válida para motores de 1,5 KW, lleva un relé térmico que cubre un rango de 7 a 10A, tiene que mirar los datos de consumo que vienen reflejados en la placa de características del motor de la bomba, aparecerá el dato de consumo en Amperios,  para saber si le sirve, tiene que estar comprendido en los parámetros que marca el arrancador, además, a la hora de ajustarlo, tiene que hacerlo al 90% de ese dato para que en el caso  que  aumente la intensidad que circula por las bobinas de la bomba, este elemento lo detecte y se dispare para proteger el motor.

Saludos

Adajusa
Francisco José Martín Rosa on 02/07/2023 17:52:54
