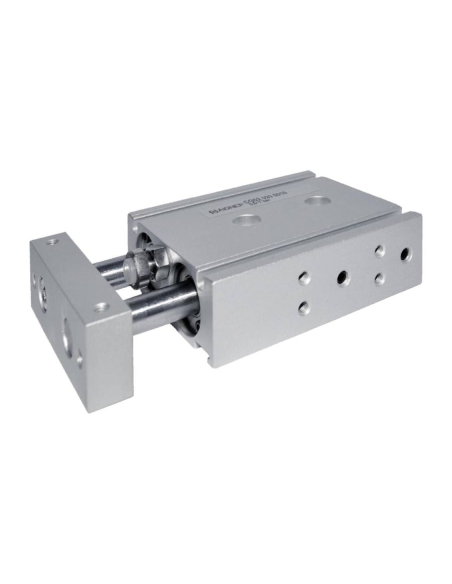

Compact double rod pneumatic cylinder , 12 mm diameter and 30 mm stroke, double magnetic effect with parallel rods. They are designed for high precision anti-rotation applications where space is limited thanks to their robust but compact structure. Solution by means of bronze bushings coupled to the rods.


These cylinders are built with high quality materials, aluminium alloy body and stainless steel rod, which gives them high strength and reliability. In addition, their design includes NBR seals and cushioning, which ensures efficient operation and a long service life. They are characterized by the possibility of fixing on several sides. by different methods, pneumatic feeding in both sides, Dual sensor slots on both top and bottom side.


They are ideal for automated systems, manipulators and robotics, where a compact guide is needed to maintain stem alignment and stable movement.

The cylinder is prepared for the mounting of magnetic detectors and different accessories. The supply only includes the double-acting cylinder, the rest of the accessories must be ordered separately. Option with ball bearings on request.

Aignep brand CG02 series cylinders are compatible and replaceable with those of the SMC brand and other brands such as AirTac, Airon, Mindman , Metal Work .




Technical characteristics of the pneumatic cylinder:

• Manufacturer: Aignep
• Manufacturer reference: CG020120030
• Diameter and stroke: Ø12x30 mm
• Type: Compact pneumatic cylinder with parallel rods, double acting
• Fluid Type: Compressed Air (lubrication not required)
• Operating pressure: 1 - 7 bar
• Seals and shock absorbers: NBR
• Construction Type: Stainless Steel Stem
• Air connection thread: M5 x 0.8
• Stem diameter: 6mm
• Operating temperature: -5ºC (no freezing) to +60ºC
• Piston speed range: 50 - 500 mm/sec
• Anti-rotation accuracy (θ): ± 0.1°

Mounting Type: Top, Bottom and Side








Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
