Compact pneumatic cylinder double guide...

Compact pneumatic cylinder double guide 32x100mm double acting sliding bushing - Mindman

Name: Compact pneumatic cylinder double guide 32x100mm double acting sliding bushing - Mindman
Brand: Mindman
SKU: MCGS0332100
Price: 290.7474 EUR
Availability: PreOrder

Special manufacturing material, shipping time 3-5 days

€290.75 Tax included

€236.38 tax excl.

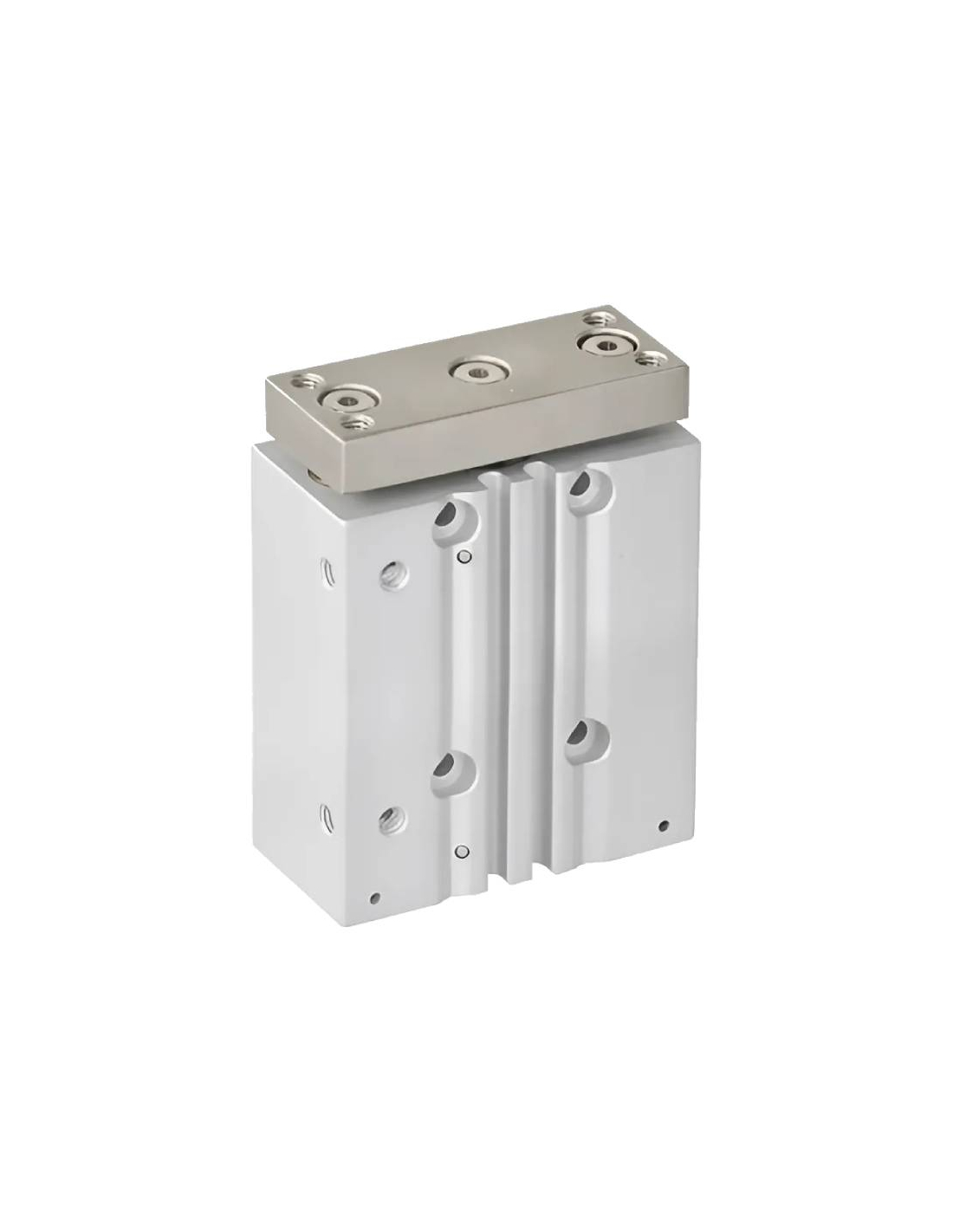

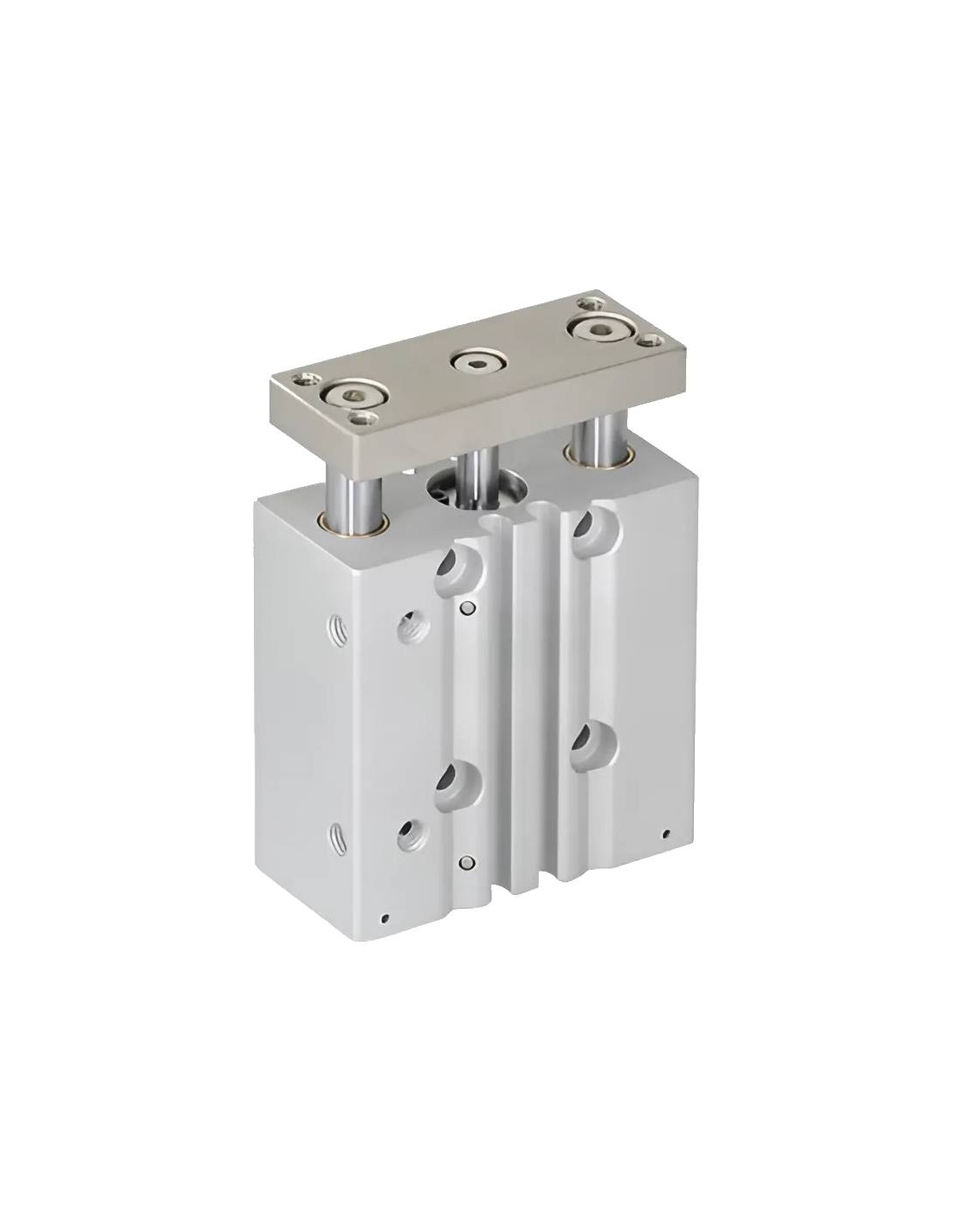

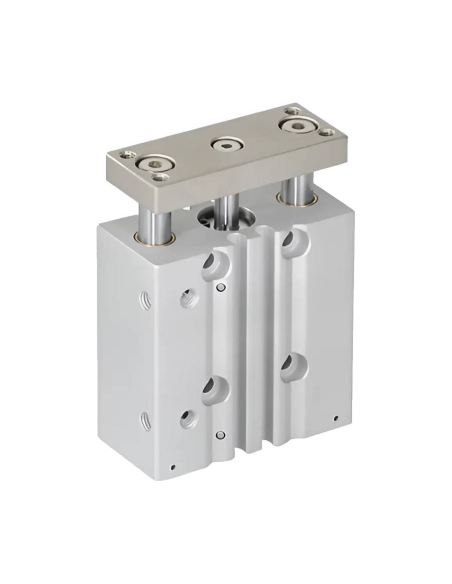

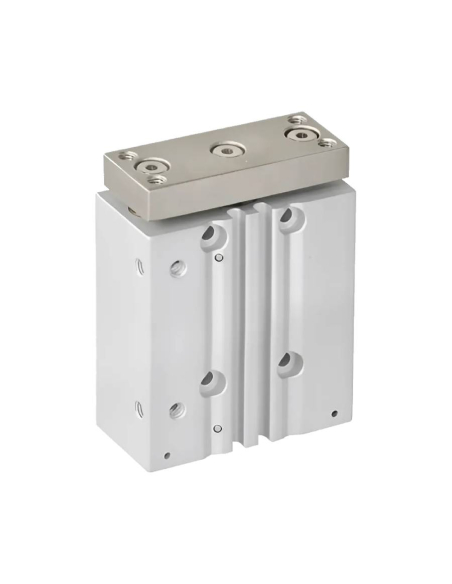

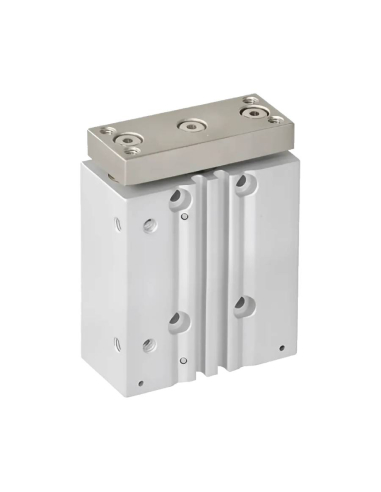

Compact double-guide pneumatic cylinder Ø32 stroke 100mm, double magnetic effect. Body in aluminium alloy with carbon steel plate, rod in steel, seals and rod cushioning in NBR. Solution by means of bronze alloy sliding bushings coupled to the guide rods.

Cylinders compatible and replaceable with those of the SMC brand and other brands such as AirTac, Airon, Aignep , Metal Work .

Reference: MCGS-03-32-100

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Compact double-guided pneumatic cylinder with a 32 mm bore and 100 mm stroke, double magnetic effect. They are designed for applications where space is limited and a cylinder with internal guides and a robust but compact structure is required. Multi-connection cylinder that allows mounting in both directions. Guiding solution using bronze alloy sliding bushings coupled with steel piston rods.

These cylinders are built with high quality materials, aluminium alloy body and steel rod, which gives them high strength and reliability. In addition, their design includes seals and rod cushioning in NBR, which ensures efficient operation and a long service life. They are characterized by the possibility of fixing on several sides. by different methods, pneumatic feeding in both sides, Dual sensor slots on both top and bottom side.

They are ideal for automated systems, manipulators and robotics, where a compact guide is needed to maintain stem alignment and stable movement.

The cylinder is prepared for the mounting of magnetic detectors and different accessories. The supply only includes the double-acting cylinder, the rest of the accessories must be ordered separately.

Mindman brand MCGS series cylinders are compatible and replaceable with SMC and other brands such as AirTac, Airon, Aignep , Metal Work .

Technical characteristics of the pneumatic cylinder:

Manufacturer: Mindman
Reference: MCGS-03-32-100
Diameter and stroke: Ø32x100 mm
Type: Double acting compact guided pneumatic cylinder
Fluid Type: Compressed Air (lubrication not required)
Operating pressure: 1 - 10 bar
Seals and shock absorbers: NBR
Damping: With elastic damping disc
Construction Type: Carbon Steel Stem
Air connection thread: 1/8
Stem diameter: 16mm
Operating temperature: -5ºC to +60ºC (no freezing)
Available speed range: 50 - 500 mm/sec
Maximum permissible working lateral load (W): 90N
Maximum allowable torque (T): 3.59 Nm
Stabilizing accuracy (θ): ± 0.07°
Weight: 3010 g

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Cilindros_Doble-Guía_ Midman

Download (827.77KB)

Questions

Be the first to ask a question about this product!
