OLEOSTATIC GOLD C61 22x1560mm Trapecial Strap -...
OLEOSTATIC GOLD C61 22x1560mm Trapecial Strap - MEGADYNE

OLEOSTATIC GOLD C61 22x1560mm Trapecial Strap - MEGADYNE

€32.54 Tax included

€26.89 tax excl.

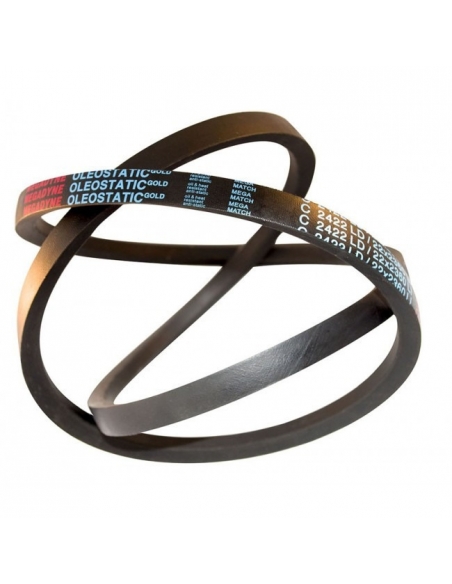

OLEOSTATIC GOLD V-belt type of profile "C" 22x14mm, with an internal development length of Li-1560mm,for power transmission in industrial machinery, agricultural machinery and gardening applications. Careful design and manufacturing, which provides low stretching, wear and are lubricant resistant. The OLEOSTATIC series are the ultimate exponent of the range of lined trapeze straps.

  • Ref: OLEOSTATIC GOLD C 61
  • Megadyne Part number: 390700960036
  • Interior development length (Li): 1560mm
  • Reference development length (Lw - Ld): 1622mm.
  • Outer length (La - Le) : 1648mm.

Perfil C



No queries yet, leave the first!


Gold oleostatic V-belt, with 22x14mm "C" profile section and with an internal development of 1560mm, specially designed for maximum performance in a wide range of industrial applications, agricultural machinery and gardening.

Manufactured with high quality raw materials to provide straps with high performance, low stretch and very resistant to wear. They are also lubricant resistant and with a wide temperature range (-30oC to +80oC).
OLEOSTATIC has a transmission capacity of up to 30% more compared to standard OLEOSTATIC belts, so it allows you to have a more compact transmission design. All components are halogen-free in compliance with RoHs regulations.

Manufactured according to REACH regulations and tolerances according to ISO 4184

composicion correas Dayco

Technical details:

  • Manufacturer: MEGADYNE.
  • Series: Oleostatic Gold.
  • Reference: C 61.
  • Part number: 390700960036
  • Type: Classic section "C".
  • Interior development length (Li): 1560mm.
  • Reference development length (Lw - Ld): 1622mm.
  • Outer length (The -Le): 1648mm.
  • Section dimensions 22x14mm.
  • Lubrication resistant: SI.
  • Temperature range: -30oC to +80oC.
  • Static conductivity: according to ISO 1813.
  • Tolerance: according to ISO 4184
  • Weight: 0.52 Kg.

Serie C



Material de uso profesional, instalar respetando las normativas vigentes en el lugar de la instalación.
