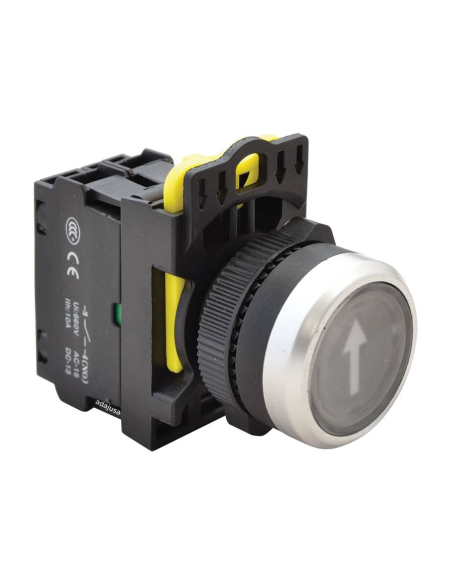

Black flush-mounted plastic pushbutton with "↑" inscription and one normally open (NO) contact, 22 mm in diameter. This snap-action pushbutton is made of high-strength plastic and features a modern design incorporating a silver bezel. It is suitable for mounting on electrical control panels for machinery and electrical control boxes in general. The pushbutton head bracket allows for mounting up to three contacts, both normally open and normally closed. This electric pushbutton is commonly used as a start button for machinery, motors, and electrical equipment.
Designed for intensive applications requiring high operational reliability and ease of assembly. The pushbutton can be installed on panels, electrical control cabinets, and control boxes for machinery, air conditioning, industrial, and general applications. Compliant with IEC 60947. It features high protection on the front side, IP65.
The supply includes the complete pushbutton with one open contact. Additional contacts can be added.
Characteristics:
- Manufacturer: TRACON
- Reference: NYG3-P4
- Head color: Black
- Head inscription: "↑"
- Mounting hole: 22mm
- Material: Plastic
- Contact : 1 open (NO). Additional contacts can be mounted.
- Nominal working current Ie (AC 1, 230V): 6A
- Nominal working current Ie (AC 15, 230V): 3A
- Nominal working current Ie (DC 13, 250V): 0.27A
- Nominal insulation voltage Ui: 660V
- Mechanical durability: 1,000,000 cycles
- Operating temperature: -25 to +40ºC
- Protection class: IP65 (from the front side)
- Regulation: EN 60947-1, EN 60947-5-1
Professional use material, install in compliance with the regulations in force at the place of installation.
