Button box with 2-stage selector with return NYK3-S24BK| ADAJUSA | price
Button box with 2-stage selector with return NYK3-S24BK| ADAJUSA | price

Box with 2-position selector with full return - NYG Series

€10.04 Tax included

8.16 tax excl.

PK-NYK3-S24BK

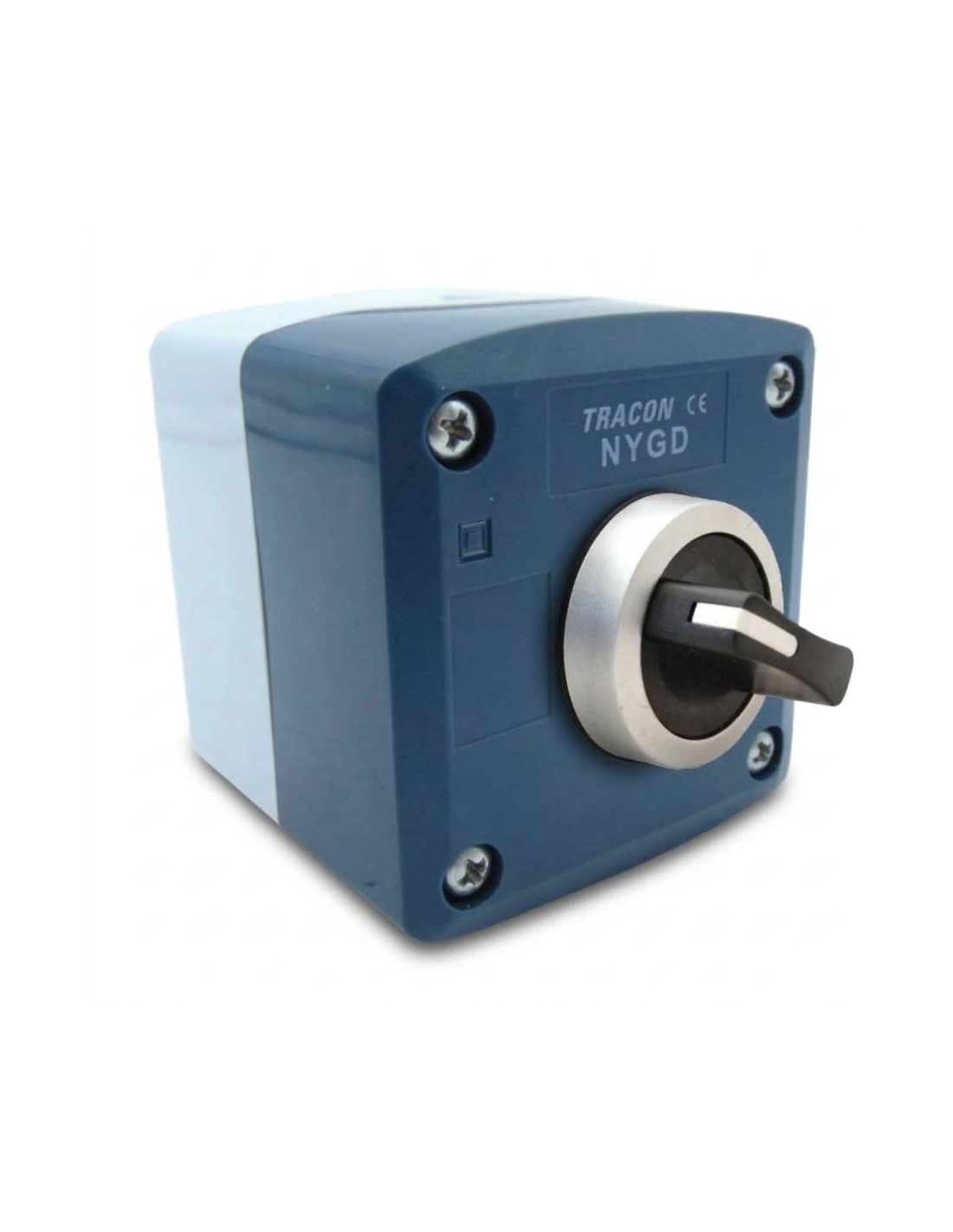

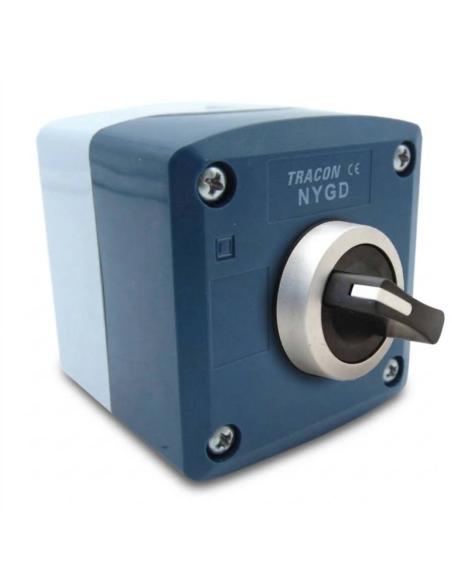

Box with 2-position selector with full return. Plastic selector with two positions with return with one contact open and one contact closed (NO + NC), case made of high resistance plastic in grey color and front in dark grey color.


Part number: PK-NYK3-S24BK


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with two-position selector with full return. Plastic selector with short two-position handle with return with one contact open and one contact closed (NO + NC). Box made of high resistance plastic in grey color and front in dark grey color. Degree of protection IP65 from the front side.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the assembly, the box and the pushbutton are supplied loose.



Features:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYK3-S24BK
  • Pushbutton type: 2-position selector with return
  • Push button color: Black
  • Inscription: None
  • Contacts1 open (NO), 1 closed (1NC)
  • Box in light grey/dark grey plastic
  • Bore diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP65 (from front side)
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.
