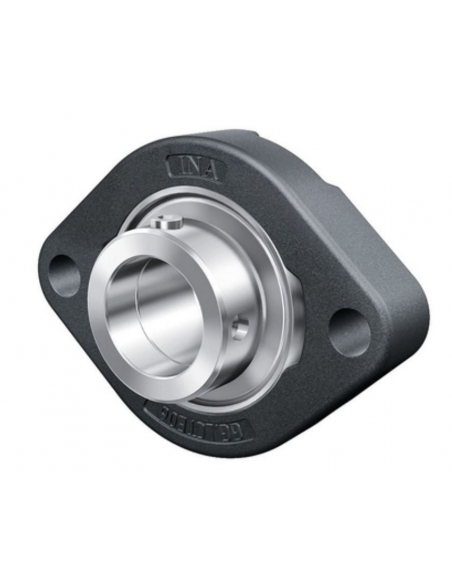

Oval bracket with shaft bearing 15mm FLCTE15-XL - INA

Oval bracket with shaft bearing 15mm FLCTE15-XL - INA

€32.00 Tax included

€26.45 tax excl.

Oval casting bracket with FLCTE15 inserted bearing for 15mm diameter shaft, self-aligning support bracket with ball bearing inserted with prisoners in the inner ring, plate sealing endowed with a lip in nitrile rubber. Bearing with spherical outer rings for self-alignment and to compensate for alignment defects. Attachment to the shaft by eccentric ring and allen prisoner.

Manufacturer: INA

Reference: FLCTE15-XL

LOGO-INA

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Oval self-aligning bracket in grey cast iron with insert already mounted, FLCTE15, for axle of 15mm.

The bearing housing body in FG20 grey cast iron protected against corrosion. High load capacity.

The inserted bearing (insert) of steel balls. These bearings are grooved. Its outer rings have a spherical surface that is free to oscillate on the support track, this oscillation allows self alignment in the housing of the support and compensate for any alignment defects and eliminate, as much as possible, unwanted efforts between the shaft and the support. The bearing is attached to the shaft by eccentric ring and hexagonal allen prisoner. Easy assembly and disassembly.

The field of application of these bearing housings are industrial and general applications with normal loads, weak to medium rotation speeds.

Bearing sealing is guaranteed by joint composed of a protective steel sheet plus rubber sealing, the bearing mounts one joint on each side. This protection system prevents the exit of grease and any possible infiltration of contaminants, which is particularly indicated when there are very aggressive external agents, dust, liquids or when the machine works outdoors.

Bearings are suitable for all applications in a temperature range of -15oC to +100oC.

Supply includes (already assembled):

  • Support: GG. LCTE03
  • Insert (bearing): RAE15-NPP-B

Main dimensions:

Dimensiones soporte INA FLCTE15

  • d: 15 mm
  • L: 58.7 mm
  • H: 81 mm
  • A1: 15mm
  • N: 6.6 mm
  • B1: 28.6 mm
  • J: 63.5 mm
  • A2: 8.4 mm
  • d3: 28 mm
  • U: 30.5 mm
  • Cr (N): 9800
  • C₀r (N): 4750
  • Weight: 0.3 Kg.

For other references or models

Material for professional use, install in compliance with the regulations in force at the installation site.
