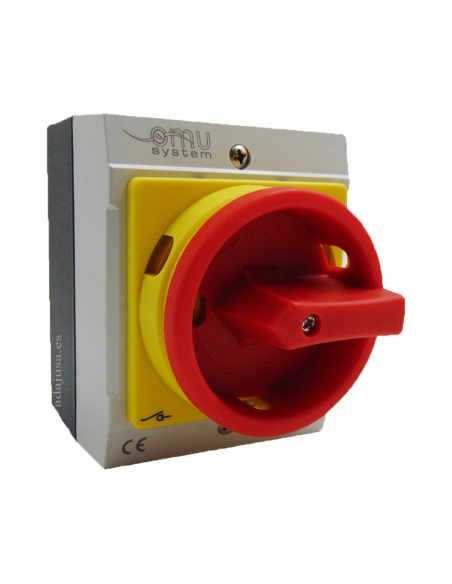

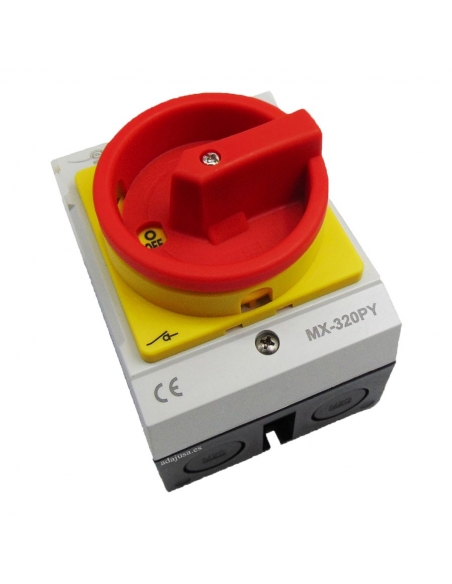

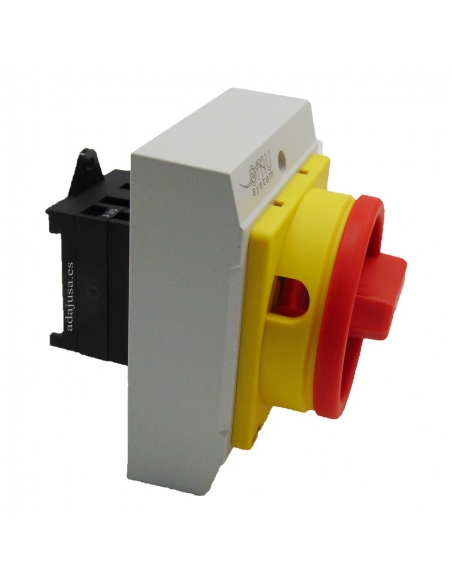

20A three-phase switch box (4 poles) yellow-red control

€13.19 Tax included

€10.90 tax excl.

Rotary switch, main disconnector 4 poles four-pole 20A . Mounted in polycarbonate box, with yellow-red drive lockable in "O" position. IP65 protection grade.

Suitable for interrupting electrical circuits, as well as direct starting of motors and main switches in machines.


Reference: MX-420PY



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with rotary switch, 4-pole 20A four-pole disconnector for inductive loads (electric motors) and general control. Yellow-red drive, lockable in "O" position.

Continuity terminals for ground and neutral. The box can only be opened with the switch in position "O".

The supply includes:

  • polycarbonate box
  • Three phase switch


Characteristics:

  • Manufacturer/Supplier: OMU/Mixvil
  • Reference: MX-420PY
  • Number of poles: 4
  • Charging current: 20A
  • Power: 4kW
  • Locking possibility with 3 padlocks when off
  • Front protection grade: IP65
  • Dimensions: 80 x 100 x 105mm
  • Cable gland size: M20
  • Regulations: EN 60947-1, EN-60947-3, EN 60947-5-1, EN 60204-1





Material for professional use, install in compliance with the regulations in force at the installation site.
