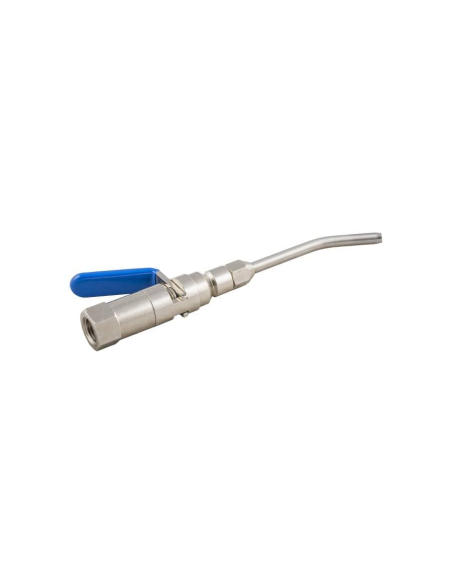

Blow gun with stainless steel tube - Aignep

Blow gun made of nickel-plated brass, with G1/4 female threaded air inlet. Easy-to-use pneumatic tool for air systems, which allows the fluid outlet pressure to be regulated and dosed by operation using the thumb, which makes it essential depending on the application for which it is intended. Very quiet blow gun, with high blowing force and capable of providing a high flow rate.


It has an elongated 90mm long nozzle with an angular shape made of stainless steel that allows the outlet fluid to reach areas that are difficult and expensive to reach. Nozzle in compliance with OSHA 1910.95(b) safety standard which ensures that the noise level must be less than 90 dBA over an 8-hour period of use.

Multipurpose gun for compressed air applications in workshops and industries, valid for multiple applications such as cleaning and removing dust, dirt, chips, residue, drying surfaces or parts, etc.

Long-life tool without the need for maintenance, resistant to shocks and wear.

Characteristics:

• Manufacturer: Aignep
• Reference: 301 90
• Series: 300
• Compatible fluids: Air
• Threaded entry: G1/4 Female
• Temperature: -10ºC to +80ºC
• Pressure: 10 bar (1 MPa)
• Flow rate: 450Nl/min at 6bar / 616Nl/min at 8bar
• Sound intensity: 83dB at 6bar / 85dB at 8bar
• Force on the handle: 23.5N at 6bar
• Blowing force: 4.6N at 6bar
• Certifications:
  • 2003/10/EC: Max. 85dB
  • OSHA 1910.95(b): Max. 90dB at 8hr

Material for professional use, install in compliance with the regulations in force at the installation site.


For more information you can download the technical sheet by clicking on the "Attachments" tab
