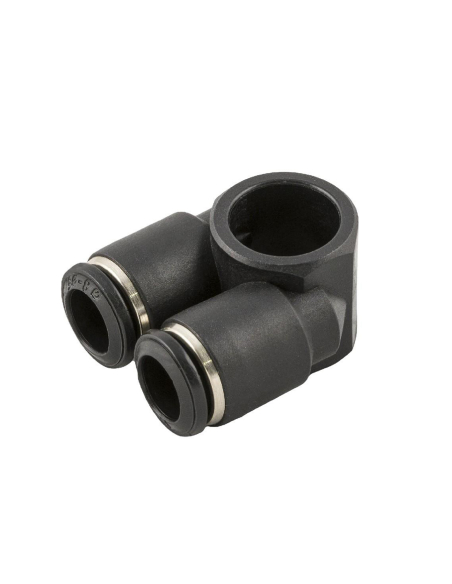

Parallel double swivel ring 1/4 tube diameter 8mm 55000 Series - Aignep

Parallel double swivel ring 1/4 tube diameter 8mm 55000 Series - Aignep

€5.31 Tax included

€4.39 tax excl.

Parallel double swivel ring 1/4 tube diameter 8mm, made of technopolymer.Veryefficientconnection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Series: 55000
Part number: 55520 8 1/4




aignep
normativa


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Parallel double swivelring 1/4 tube diameter 8mm, made of technopolymer. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring clamps the tube without deforming it, thus allowing a greater simplicity in the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum


Technical specifications:

  • Manufacturer: Aignep.
  • Part number: 55520 8 1/4
  • Outer tube diameter: 8mm
  • Thread: 1/4
  • Fluid: vacuum, compressed air and water
  • Material: Technopolymer
  • Tube extractor ring: acetal resin
  • Seal of retention: NBR
  • Clamping spring: stainless steel
  • Pressure: -0,99 bar to 20 bar
  • Working temperature: -20°C to +80°C
  • Thread standard
    • Gas conical according to ISO 7.1, BS 21,DIN 2999
    • Gas cylindrical according to ISO 228 Class A
    • Metric according to ISO R/262


55520Esq
55520Tab

Material for professional use, install in compliance with the regulations in force at the place of installation.
