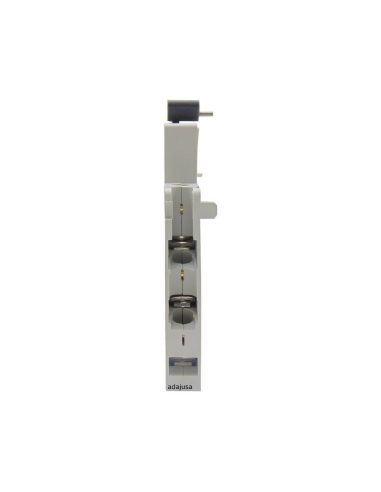

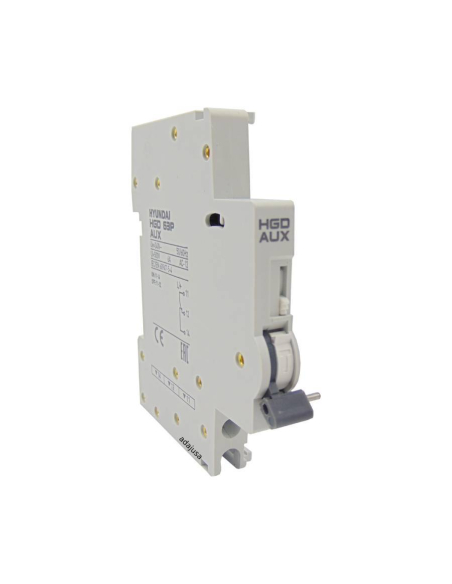

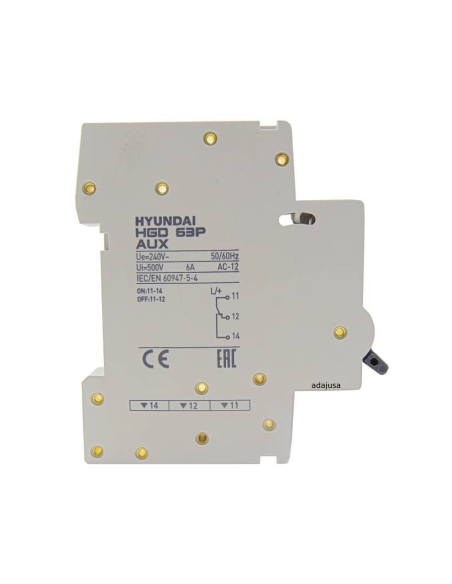

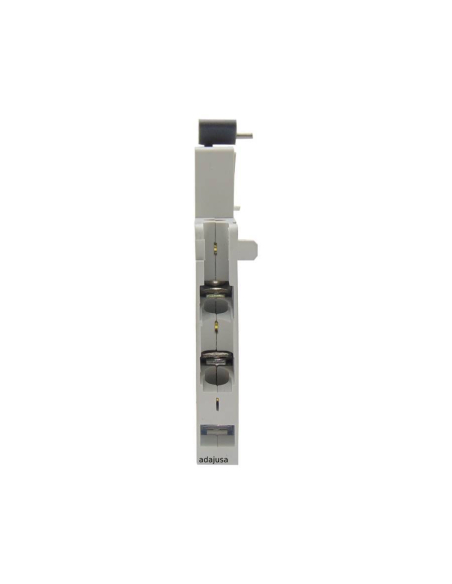

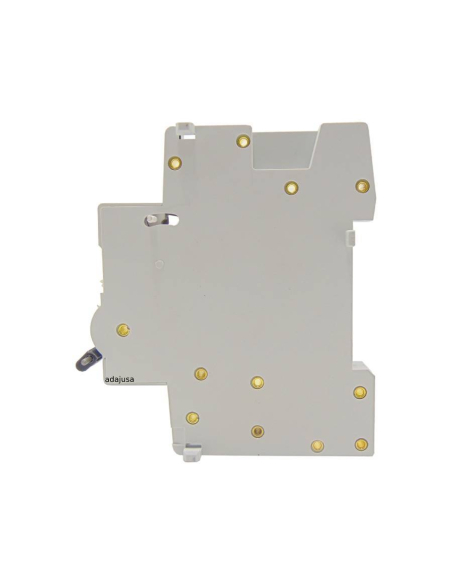

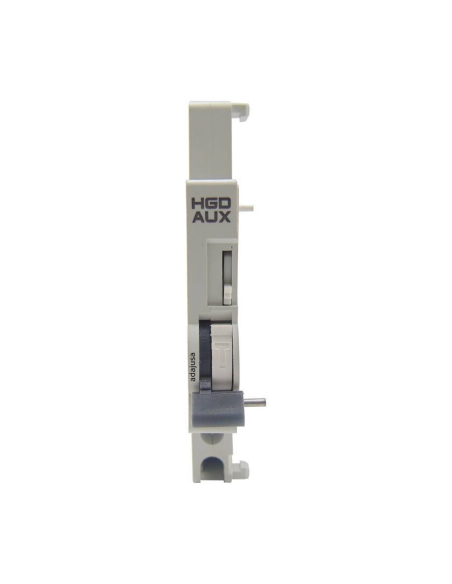

Magnetothermal auxiliary Contact - Hyundai Electric

€15.97 Tax included

€12.98 tax excl.

Auxiliary Contact for circuit breaker, with 1 NO/NC switched contact, signals the "open" or "closed" position of the circuit breaker switch to which it is associated, it is located on the left side of the circuit breaker.

Reference AUX M63-N


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Side auxiliary contact chamber to connect to circuit breaker with 1 switched contact, located on the left side of the circuit breaker. The camera is coupled to the circuit breaker using its operating lever and release tab.

Technical characteristics:

  • Manufacturer/Supplier: Hyundai Electric
  • Reference: AUX-HGD63P
  • Nominal intensity (In): 3A.
  • Type: OF.
  • Maximum employment voltage: 400Vac.
  • Contact type: Switched NO/NC.
  • Location: Left side.



Note: The auxiliary contact for the circuit breaker is valid for the Hyundai series HGD (63 M/P) brands.


Material for professional use, install in compliance with the regulations in force at the installation site.
