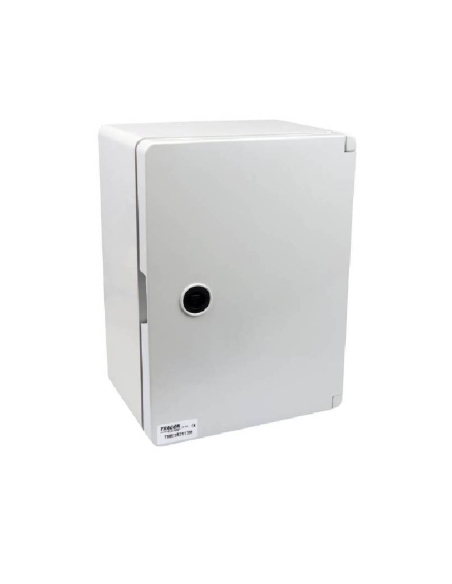

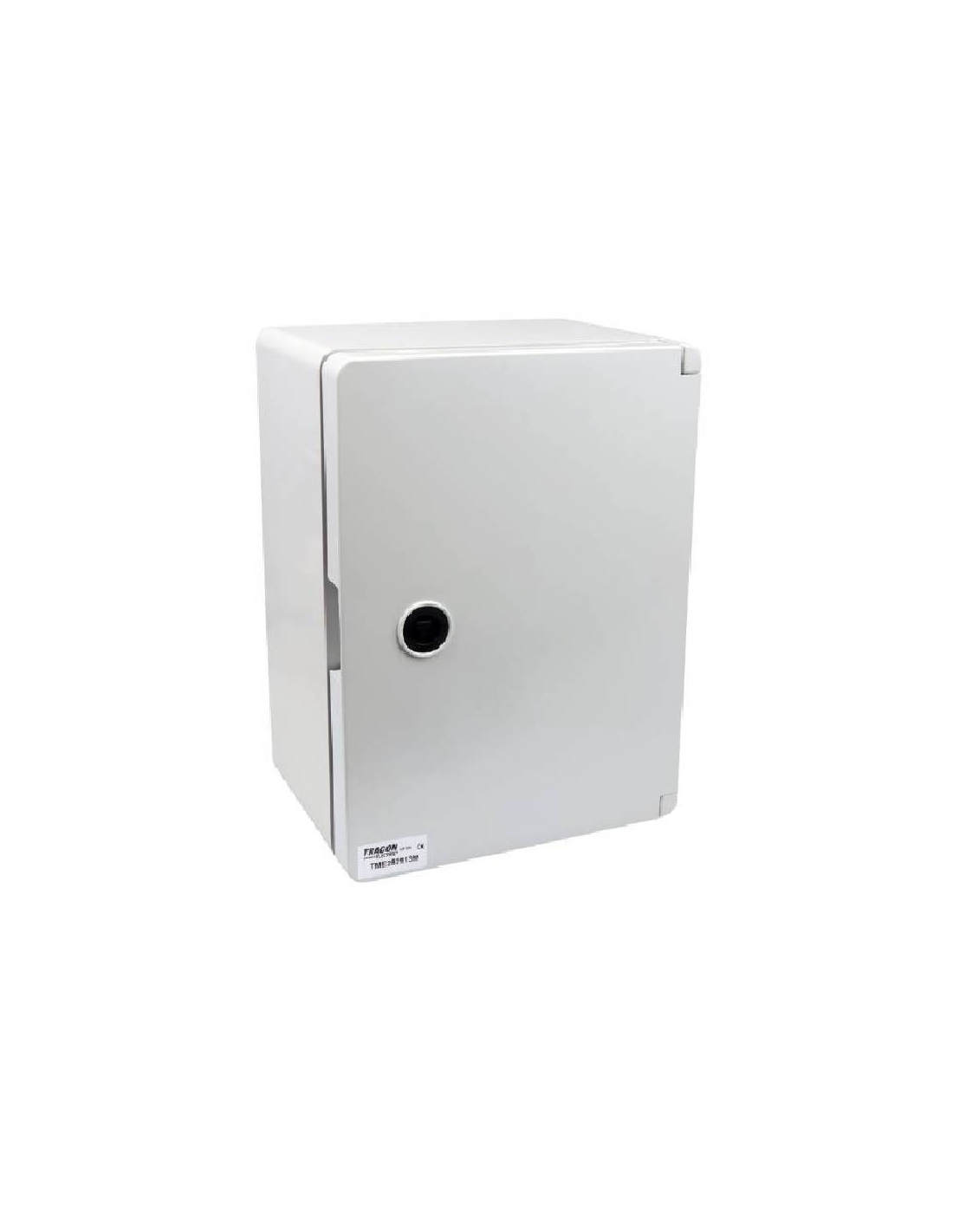

These electrical cabinets, made of halogen-free, high-strength ABS, guarantee a long service life for your electrical assemblies. They have an easy opening system, smooth door swing and maximum opening to improve the working width in your assemblies, easily removable door. Cabinet electrical enclosures manufactured under CE regulations. IP65 protection degree and IK10 impact resistance degree.
Designed for use both indoors and outdoors, being manufactured in ABS thermoplastic with high resistance to shock and high resistance to UV rays and inclement weather.

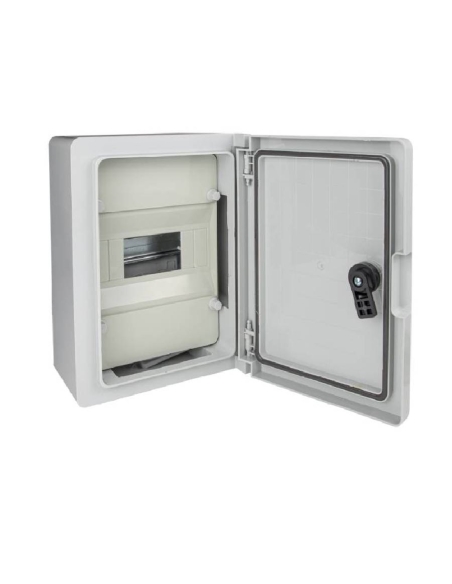

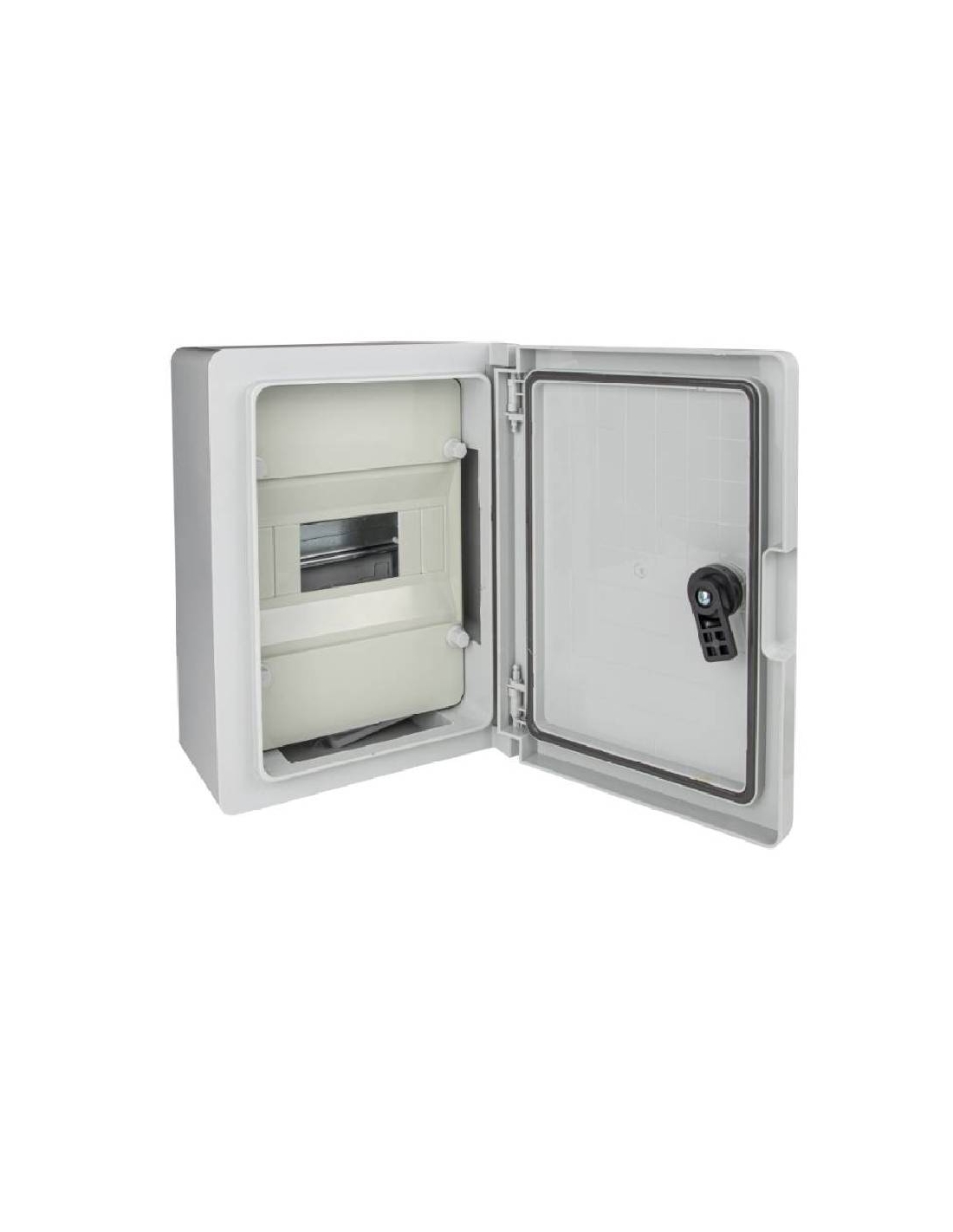

The cabinet is supplied with 8-module ABS front distribution panel or chassis (1 row with 8 modules), Din rail for mounting the switchgear and brackets for wall mounting. The chassis provides division and isolation to the modular switchgear and material to be installed inside the cabinet, as well as ease of assembly and installation of the same.
Features:
- Manufacturer/Supplier: Tracon
- Part number: TME282113M
- Dimensions: 280x210x130mm
- Height: 280mm
- Width: 210mm
- Depth: 130mm
- Material: ABS
- Color: Gray RAL 7035
- Rated voltage: 600 / 1000 Vac/dc
- Rated insulation voltage: 1kV
- Maximum rated current: 100A
- Door with 2 hinges
- Number of locks: 1
- Door opening angle: 180º
- Type of latch: Quarter turn, in polyamide
- Fixing: Mural
- ABS front frame included in scope of delivery
- Wall mounting brackets included in scope of delivery
- Ambient temperature: -25ºC to +50ºC
- Degree of protection: IP65
- Impact resistance: IK10
- Standards: CE, EN62208
Delivery includes:
- Cabinet
- Front distribution chassis
- DIN rail
- Lock
- Mounting brackets
| Material for professional use, install in compliance with the regulations in force at the place of installation. |
