Three-phase contactor 22A coil 24Vac - LS

€41.49 Tax included

33.73 tax excl.

97MC22B24AC3P

Three-phase electric contactor equipped with high-capacity contacts for controlling electric motors, heating, lighting, ventilation, general uses, 3 poles with a current capacity of 22A category AC3 or 40A category AC1, with 24Vac coil, the contactor is equipped with one auxiliary contact open (NO) and another closed (NC).

Contactor reference: MC-22b AC24Vac 3P

Contactor electrical diagram

LS logo LG industrial Systems

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product
Privacy
Shipments
Returns


Three-phase contactor (3 poles) of 22A in category AC3 or 40A in category AC1, the contactor is equipped with highly robust main contacts, suitable for demanding applications for controlling electric motors, heating, lighting, ventilation systems and for use in general. The contactor is equipped with an open (NO) and a closed (NC) auxiliary contact, located on the side of it. The contactor can be fixed using screws or by DIN rail.

Technical characteristics:

  • Manufacturer: LS (LG).
  • Contactor reference: MC-22b AC24Vac 50/60Hz 1a1b 3P
  • Maximum operating voltage: 690Vac.
  • Coil voltage: 24Vac.
  • number of contactor poles: 3.
  • Rated current for contactor in AC3: 22A.
  • Rated current for the contactor in AC1 (Ith): 40A.
  • Maximum power (kW) 380-400Vac: 11kW.
  • Maximum power (kW) 220-230Vac: 5.5kW.
  • Auxiliary Contacts : 2 lateral (1 open and 1 closed).
  • Minimum current through the auxiliary contact: DC 17V 5mA.
  • Operations per hour: 1800.
  • Mechanical durability: 15.000.000 operations.
  • Electrical durability: 2.000.000 operations.
  • Weight: 0.34 kg.
  • Dimensions: 45x73.5x86 mm.

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Question
Hola. ¿Hay posibilidad de modificar los tres contactos principales de este contactor para que sean normalmente cerrados?
Answer
Buenos días. Los contactores de los que disponemos, los contactos de potencia siempre son abiertos, cuando la bobina actúa se cierran, lo que si existe son contactos auxiliares para contactores, pero se utilizan para maniobra, siendo menor la intensidad que soportan. https://adajusa.es/es/accesorios-para-contactores-ls-electric/5117-bloque-4-contactos-2na-2nc-frontales-para-contactores-ls-8435532851172.html La intnesidad que soporta el contacto es de 16 A. No obstante, verifique que cumple con sus especificaciones. Saludos Adajusa
José Manuel on 04/14/2022 23:18:16

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Three-phase contactor 32A coil 230Vac - LS Three-phase contactor 32A coil 230Vac - LS 2
3-pole 230Vac coil contactors - LS

Three-phase contactor 32A coil 230Vac - LS

LS Electric
9MC32A230AC3P
€61.34 (€49.87 tax excl.)
Electric three-phase contactor equipped with high capacity contacts for electric motor control, heating, lighting, ventilation,.., 3 pole with a current capacity of 32A AC3 category or 50A category AC1, with coil 220-230Vac, the contactor is equipped with two open auxiliary contacts (NA) and two other closed (NC). Contactor Reference: MC-32a AC230Vac 3P...
Three-phase 3-pole contactor with 32A coil 24Vdc | ADAJUSA | price Three-phase 3-pole contactor with 32A coil 24Vdc | ADAJUSA | price 2
Contactors 3 poles coil 24Vdc

Three-phase contactor 32A 24Vdc auxiliary contact closed NC TR1D Series

TRACON
TR1D3201B4
€78.01 (€63.42 tax excl.)
Three-phase electric contactor equipped with high-capacity contacts, with 85% silver, for controlling electric motors, heating, lighting, ventilation, or general uses. 3-pole contactor with current capacity of 32A category AC3 or 50A category AC1, with 24Vdc coil, the contactor is equipped with a closed auxiliary contact (NC).Reference: TR1D3201B4...

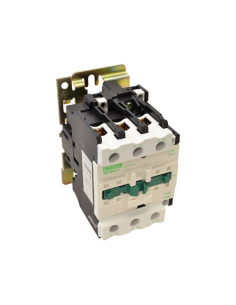

Three-phase contactor 3 poles 80A 24Vac TR1D | ADAJUSA | price
Contactors 3 poles coil 24Vac

Three-phase contactor 80A 24Vac auxiliary contact NO NC Series TR1D

TRACON
TR1D8011B7
€56.67 (€46.07 tax excl.)
Three-phase electric contactor equipped with high-capacity contacts, with 85% silver, for controlling electric motors, heating, lighting, ventilation, or general uses, 3 poles with a current capacity of 80A category AC3 or 125A category AC1, With 24Vac coil, the contactor is equipped with 2 auxiliary contacts, one open (NO) and one closed (NC). Reference:...
Mini connector LS 9A coil 230Vac auxiliary contact open NA Mini connector LS 9A coil 230Vac auxiliary contact open NA 2
Mini-connectors and accessories

Mini connector 9A coil 230Vac open auxiliary contact NA - LS

LS Electric
97GMC9MA23A
€17.26 (€14.03 tax excl.)
Electric three-phase mini connector for motor control, heating, lighting, ventilation, or general uses, 3 pole with a current capacity of 9A AC3 category or 20A category AC1, with coil 220-230Vac, the contactor is equipped with an open auxiliary contact (NA). Ref: GMC-9M-10-AC230V Representative image for illustrative purposes, the item...

Customers who bought this product also bought:

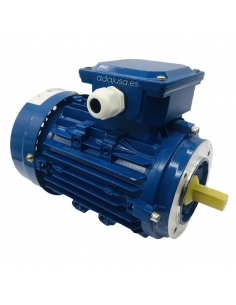

Three-phase motor 1.1Kw 1.5HP 230/400V 1500 rpm IE2 Flange B14
