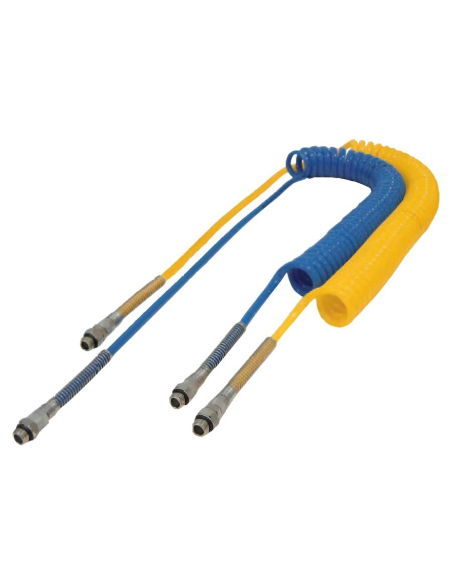

Spiral polyurethane tube 6.5x10mm 7.5m straight terminal with 1/4 fittings - Aignep

Spiral flexible tube Hose with straight terminals for pneumatic applications, Measurement 6.5x10mm in length of 7.5 meters, available in blue or yellow. Tube made of PU98 Shore A polyurethane , it has excellent flexibility that facilitates the recovery of the spiral without causing malformations, as well as ease of use for operators.

The straight tube terminals are supplied with 1/4 size fittings, with both the short terminal and the long terminal having rotating fittings, which makes it ideal for the connection and comfortable handling of pneumatic tools.

Characteristics:

• Manufacturer: Aignep
• Reference: ES6.5X10X7.5GG
• Measurement: 6.5x10mm
• Length: 7.5m
• Available colors: Blue / Yellow
• Inner diameter: 6.5mm
• Outer diameter: 10mm
• Right terminal length: 120mm
• Left terminal length: 500mm
• Short terminal fitting: 1/4 male swivel fitting
• Long terminal fitting: 1/4 male swivel fitting
• Hardness: SHORE 98 A / SHORE 49-55 D
• Temperature: -40ºC to +60ºC
• Tolerances:

  ±0.10 in wall thickness
  ±0.10 in outer Ø
  ±0.5% on weight

NOTE: Not suitable for use with water and humid environments.




Material for professional use, install in compliance with the regulations in force at the installation site.
